370 Emergency LED Bulkhead Light

The 370 Wall Mounted Emergency Sensor Rectangle Light is a state-of-the-art, energy-efficient LED emergency sensor lamp designed for a wide range of applications. With its sleek and modern design, this lamp not only provides reliable emergency lighting but also offers brightness adjustment features to cater to different environments and user preferences. It is the perfect solution for public corridors, staircases, industrial areas, and underpasses, ensuring safety and convenience in any situation.

Technical Specifications

Model	C370Y220L10-5	C370Y220L20-3
Input Voltage	220-240VAC
Power	10W	20W
Light Source	LED
Luminous Flux	>1000lm	>1800lm
Temperature	4000K/6000K
Dimming Function	7 steps (40%,60%,70%,80%,90%,100%)
Charging Time	24 Hours
Emergency Duration	2 Hours
Emergency Brightness	500lm
Battery	Ni-MH/Ni-CD 6V/2500mAh
Life Span	>50000H
Housing Material	Powder-painted die-cast aluminum
Lampshade Material	Flame retardant V0 PC
IP rating	IP54
Surge Immunity Level	4KV
Net Weight	1.92 Kg

370 Plastic Bulkhead Type LED Luminaries

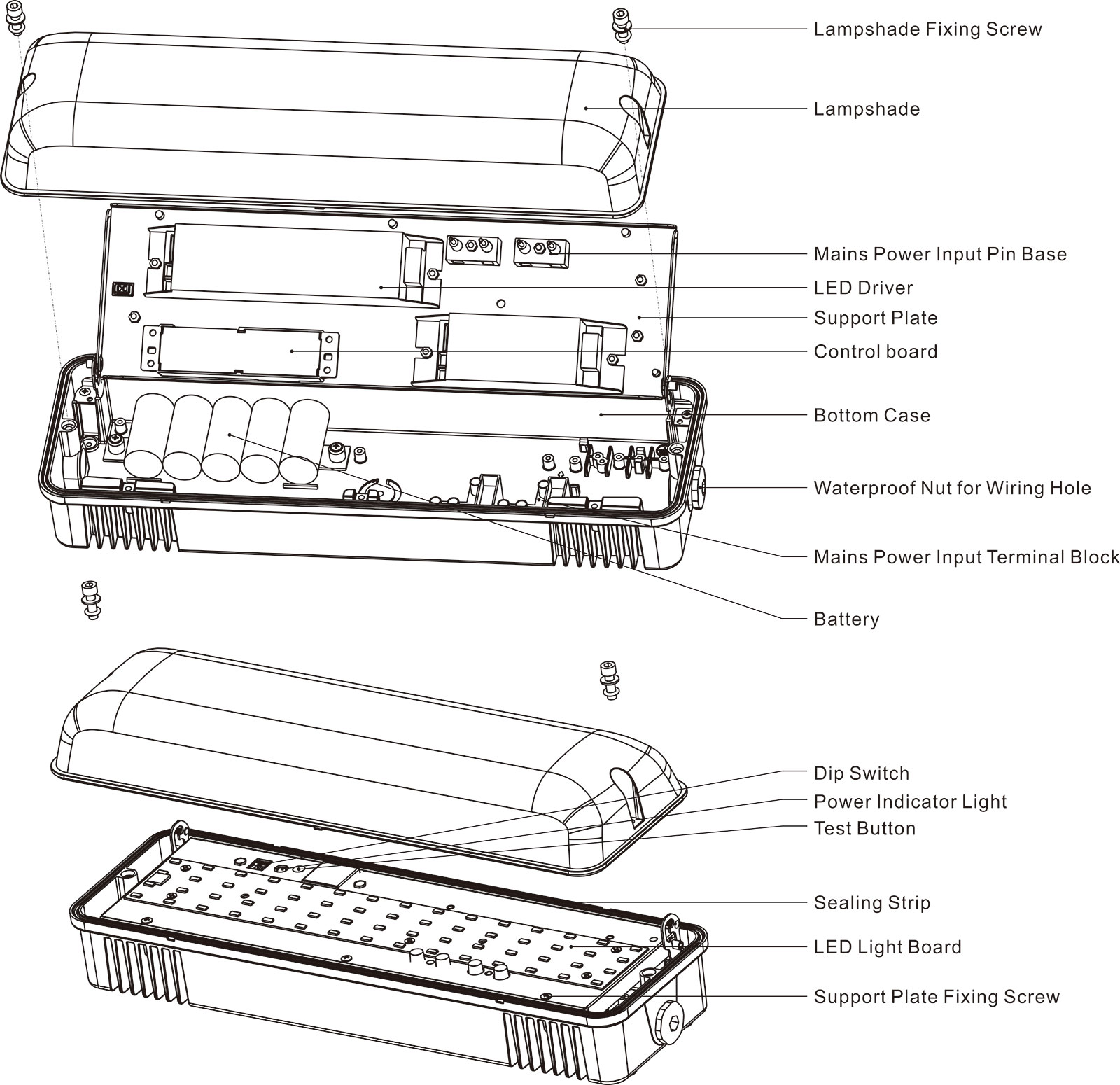

370-Emergency-Bulkhead-Type-LED-Emergency-Luminaries

Product Details

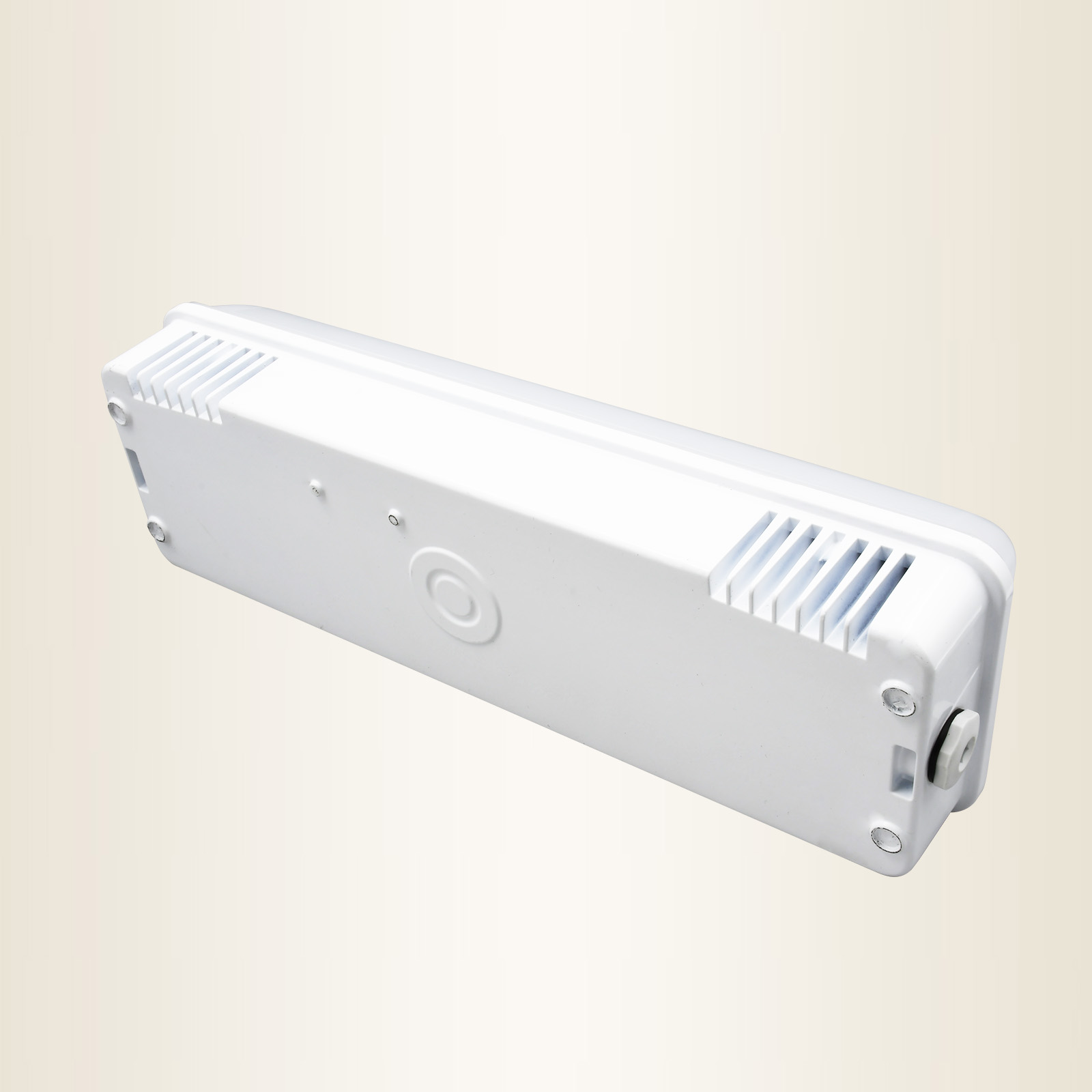

370 Emergency Bulkhead Type LED Emergency Luminaries (1)

Product Specifications

The 370 Wall Mounted Emergency Sensor Rectangle Light comes in two models: C370Y220L10-5 with a power of 10W and C370Y220L20-3 with a power of 20W. Both models operate on an input voltage range of 220-240VAC and feature high-efficiency LED light sources. With luminous flux ratings of over 1000lm and 1800lm respectively, these lamps provide bright and clear lighting for various applications.

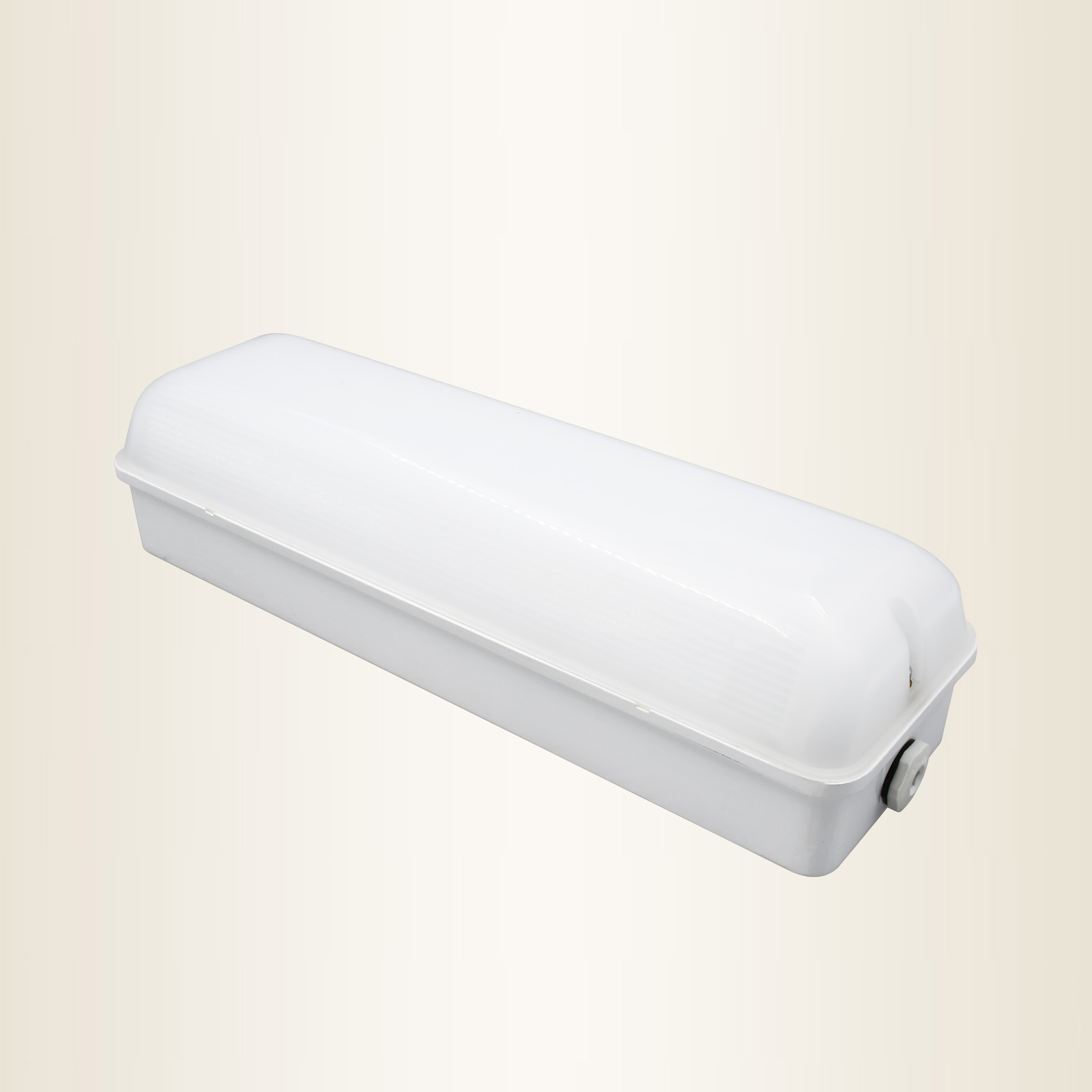

370 Emergency Bulkhead Type LED Emergency Luminaries (2)

Functionality

This emergency sensor lamp is equipped with a 7-step dimming function, allowing users to adjust the brightness to 40%, 60%, 70%, 80%, 90%, or 100% according to their needs. Additionally, it has a charging time of 24 hours and can provide emergency lighting for up to 2 hours at a brightness of 500lm. The built-in Ni-MH/Ni-CD 6V battery ensures reliable performance during power outages.

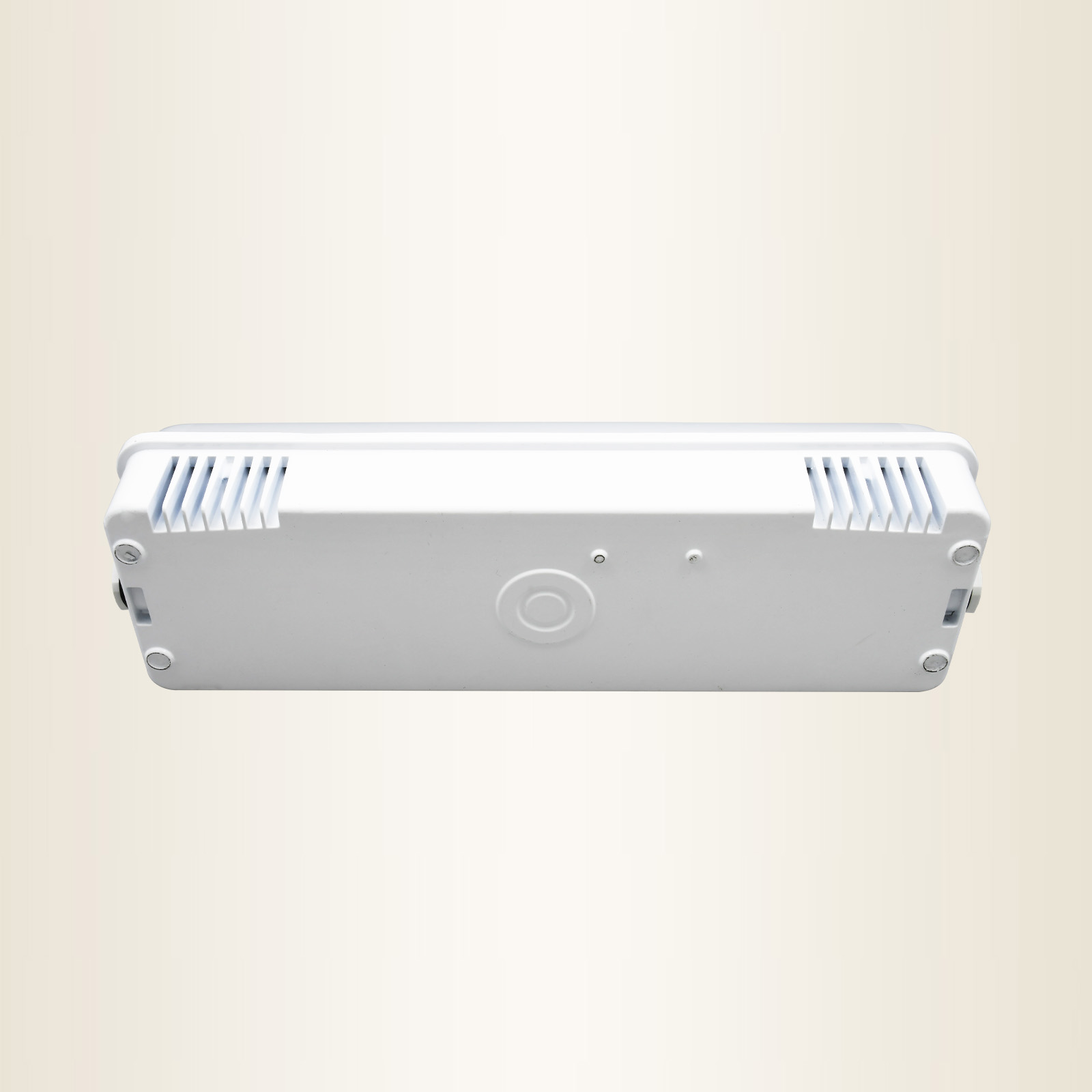

370 Emergency Bulkhead Type LED Emergency Luminaries (5)

Advantage Description

The 370 Wall Mounted Emergency Sensor Rectangle Light stands out with its energy-saving, efficient, and reliable performance. Its high-quality LED lamps and optimized die-cast aluminum housings ensure long-lasting durability and high-quality lighting. The lampshade is made of flame retardant V0 PC material, adding an extra layer of safety.

370 Emergency Bulkhead Type LED Emergency Luminaries (4)

User Experience

Users will appreciate the convenience and flexibility of this emergency sensor lamp. The brightness adjustment feature allows for customized lighting according to different environments and personal preferences. The sleek and modern design complements any interior decor, making it a stylish and functional addition to any space.

Material

The housing of the 370 Wall Mounted Emergency Sensor Rectangle Light is made of powder-painted die-cast aluminum, providing a durable and rust-resistant finish. The lampshade is constructed from flame retardant V0 PC material, ensuring safety and reliability.

Installation

Installing the 370 Wall Mounted Emergency Sensor Rectangle Light is quick and easy. It can be mounted on any wall surface, making it a versatile solution for various applications. The compact design allows for easy installation in tight spaces, making it an ideal choice for public corridors, staircases, and other areas with limited space.

Application Scenarios

This emergency sensor lamp is perfect for a wide range of applications, including public corridors, staircases, industrial areas, and underpasses. Its reliable performance and brightness adjustment features make it an ideal solution for ensuring safety and convenience in any environment.

Sustainability

The 370 Wall Mounted Emergency Sensor Rectangle Light is designed with sustainability in mind. Its energy-efficient LED lamps and long-lasting battery life reduce energy consumption and environmental impact. Additionally, the use of recyclable materials and eco-friendly production processes contribute to its overall sustainability.

Customization, OEM, and ODM Services

We offer customization, OEM, and ODM services to meet the specific needs of our clients. Whether you need a custom design, logo, or packaging, we can provide tailored solutions to fit your brand and application requirements.

Certification Options

We can provide various certifications according to customer requirements, ensuring compliance with international standards and regulations. Our team of experts will work with you to determine the appropriate certifications for your application, ensuring that the 370 Wall Mounted Emergency Sensor Rectangle Light meets all safety and performance requirements.
