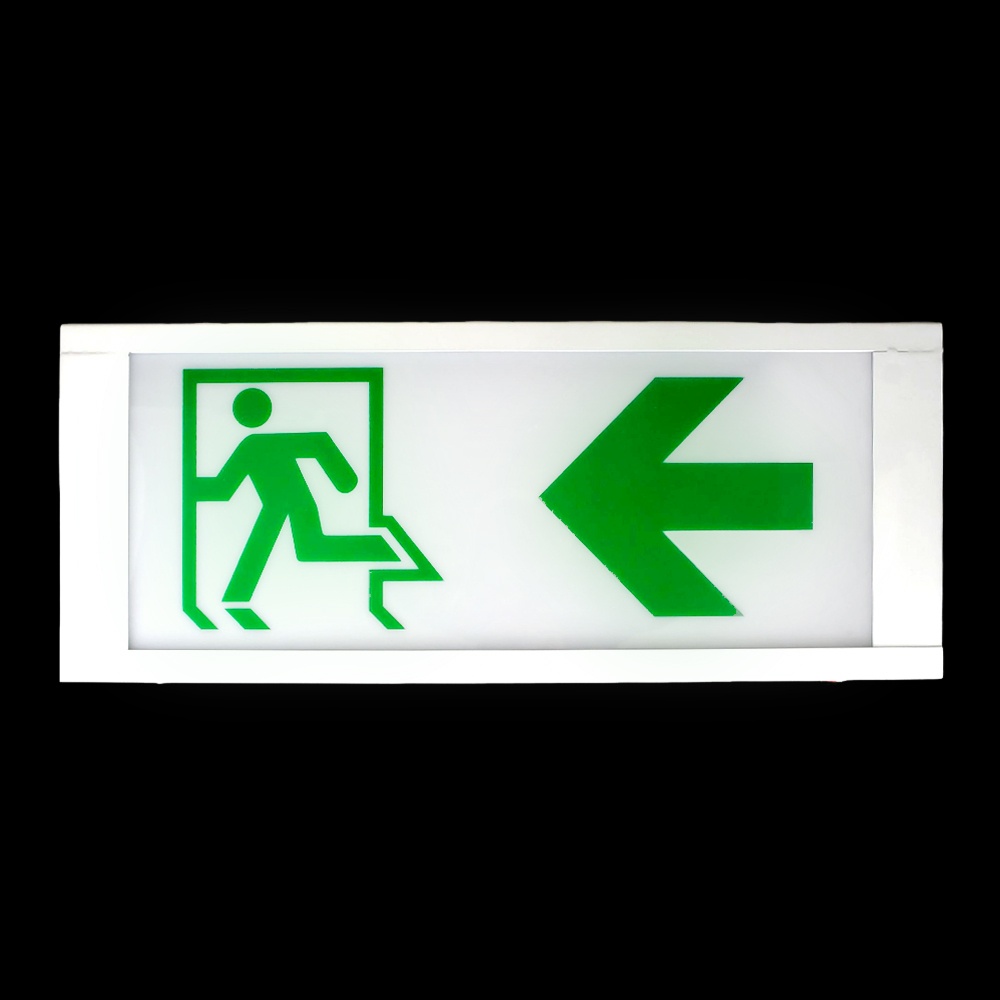

    450 Emergency LED Exit Sign Box

    Looking for a dependable and energy-efficient emergency exit signage that ensures safety and compliance in your indoor facility? Introducing the X450ZY220L033V6-10C, a state-of-the-art emergency exit sign designed to provide clear and visible guidance in the event of an emergency.

    • Model X450ZY220L033V6-10C
    • Input Voltage 220-240 VAC
    • Light Source 6000K LED
    • Charging Time 24 Hours
    • Emergency Duration 2 Hours
    Contact us Download

    product information

    Model

    X450ZY220L033V6-10C
    Input Voltage

    220-240 VAC
    Power

    AC220V：4.3W

    AC240V：5.6W
    Light Source

    6000K LED
    Charging Time

    24 Hours
    Emergency Duration

    2 Hours
    Switching Time

    <0.1Sec
    DC Surface Brightness

    >100cd/m2
    Battery

    Ni-CD 3.6V/600mAh
    Housing Material

    Powder-coated steel
    Plate Material

    Acrylic (PMMA)
    IP rating

    IP20
    Net Weight

    1.78 Kg
    450 Emergency LED Exit Sign Box450 Emergency LED Exit Sign Box a

    product Description

    450 Emergency LED Exit Sign Box

    Model Identification

    The X450ZY220L033V6-10C is a sophisticated emergency exit sign that combines advanced technology with sleek design. Its modern aesthetics make it an ideal fit for various indoor environments, including commercial buildings, corporate offices, educational institutions, and medical facilities.
    450 Emergency LED Exit Sign Box (2)

    Input Voltage Range

    With a wide input voltage range of 220-240 VAC, this signage can easily adapt to your facility's power requirements. Whether you're in a country with 220V or 240V electrical standards, the X450ZY220L033V6-10C will seamlessly integrate into your existing electrical system.
    450 Emergency LED Exit Sign Box (1)

    Power Consumption

    At AC220V, the signage consumes only 4.3W of power, while at AC240V, it draws 5.6W. This energy-efficient design not only helps reduce your facility's carbon footprint but also contributes to lower energy bills.
    450 Emergency LED Exit Sign Box (3)

    Light Source

    Equipped with a crisp 6000K LED light source, the X450ZY220L033V6-10C provides superior brightness and clarity. The LED lights ensure that the emergency exit signage is easily visible, even in dimly lit conditions, guiding occupants safely to the nearest exit.
    450 Emergency LED Exit Sign Box (1)

    Charging Time

    The X450ZY220L033V6-10C features an automated battery charging system that fully charges in just 24 hours. This ensures that the signage is always ready to provide emergency illumination when needed.
    450 Emergency LED Exit Sign Box (2)

    Emergency Duration

    In the event of a power outage, the X450ZY220L033V6-10C maintains its brightness for a full 2 hours. This extended emergency duration provides enough time for occupants to safely evacuate the facility.

    DC Surface Brightness

    With a surface brightness of over 100cd/m2, the X450ZY220L033V6-10C ensures that the emergency exit signage is highly visible, even in challenging lighting conditions. This brightness level helps to guide occupants quickly and efficiently to the nearest exit.

    Battery Configuration

    The signage is powered by a Ni-CD 3.6V battery with 3 x AA600mAh cells. This robust battery configuration provides reliable backup power in the event of a power failure, ensuring that the emergency exit signage remains illuminated.

    Material

    Constructed from durable powder-coated steel, the X450ZY220L033V6-10C is designed to withstand the rigors of daily use. Its corrosion-resistant finish ensures that the signage looks great and performs flawlessly for years to come.

    Installation

    Installing the X450ZY220L033V6-10C is easy and straightforward. The signage is wall-mounted, saving space and making it easy to access in case of an emergency. A comprehensive installation kit and instructions are included to guide you through the process.

    Customization and Branding

    Looking to add a personal touch to your emergency exit signage? The X450ZY220L033V6-10C offers customization options to meet your unique needs. Whether you want to add your facility's logo or specific branding, we can create a bespoke solution tailored to your requirements.

    Compliance and Certifications

    The X450ZY220L033V6-10C is compliant with multiple international safety and quality benchmarks. Various certifications are offered upon request to align with regional and industry-specific standards. This ensures that the signage meets the highest safety and quality requirements, providing you with peace of mind and ensuring compliance with local regulations.
    In summary, the X450ZY220L033V6-10C emergency exit signage is your reliable safety companion. Its advanced features, sleek design, and dependable performance make it an ideal choice for ensuring safety and compliance in your indoor facility. Don't wait—upgrade your emergency exit signage today and provide a clearer, safer path for your occupants in case of an emergency.
