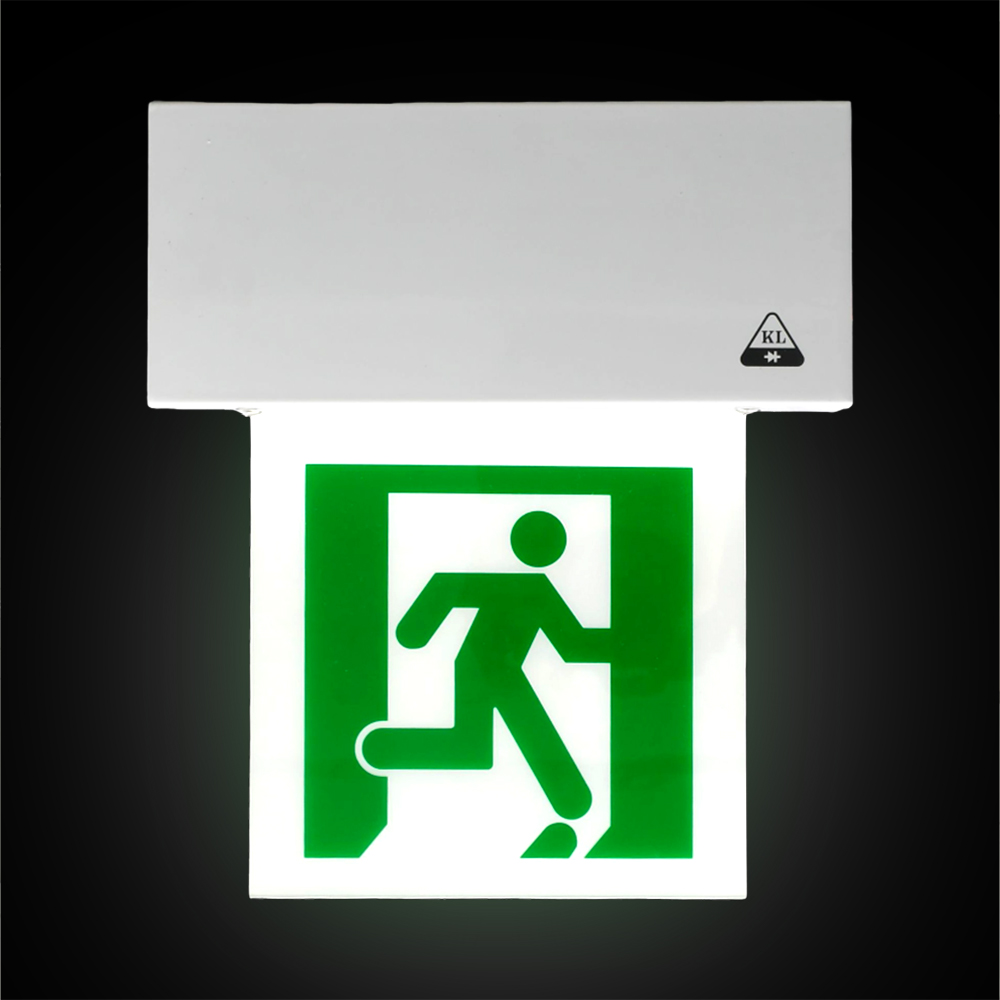

165 Surface Mounted Emergency Exit Sign

Light Up Every Emergency Moment in The World

Introducing the P220ZY220L033V6-10C, an advanced emergency lighting solution designed to keep you safe in the darkest of times. This state-of-the-art device combines high-efficiency LED technology with a robust powder-coated steel body to provide reliable illumination and long-lasting durability. Whether you're in a commercial building, office, or any other public space, the P220ZY220L033V6-10C ensures that you'll always have a clear path to safety.

Model P220ZY220L033V6-10C
Input Voltage 220-240 VAC
Light Source 6000K LED
Charging Time 24 Hours
Emergency Duration 2 Hours

product information

Model	P220ZY220L033V6-10C
Input Voltage	220-240 VAC
Power	AC220V：3.9W	AC240V：5.1W
Light Source	6000K LED
Charging Time	24 Hours
Emergency Duration	2 Hours
Switching Time	<0.1Sec
DC Surface Brightness	>100cd/m²
Battery	Ni-CD 3.6V/600mAh
Housing Material	Powder-coated steel
Plate Material	Acrylic (PMMA)
IP rating	IP20
Net Weight	1.19 Kg

Technical Specifications

Model	P220ZY220L033V6-10C
Input Voltage	220-240 VAC, compatible with a wide range of electrical systems
Power Consumption	AC220V: 3.9W, AC240V: 5.1W, ensuring energy-efficient operation
Light Source	6000K LED for crisp, white light that stands out in any environment
Charging Time	24 Hours for a full battery recharge
Emergency Duration	Up to 2 Hours of continuous light during power outages
DC Surface Brightness	>100cd/m2, providing clear and visible guidance
Battery	Ni-CD 3.6V/3*AA600mAh, offering reliable backup power

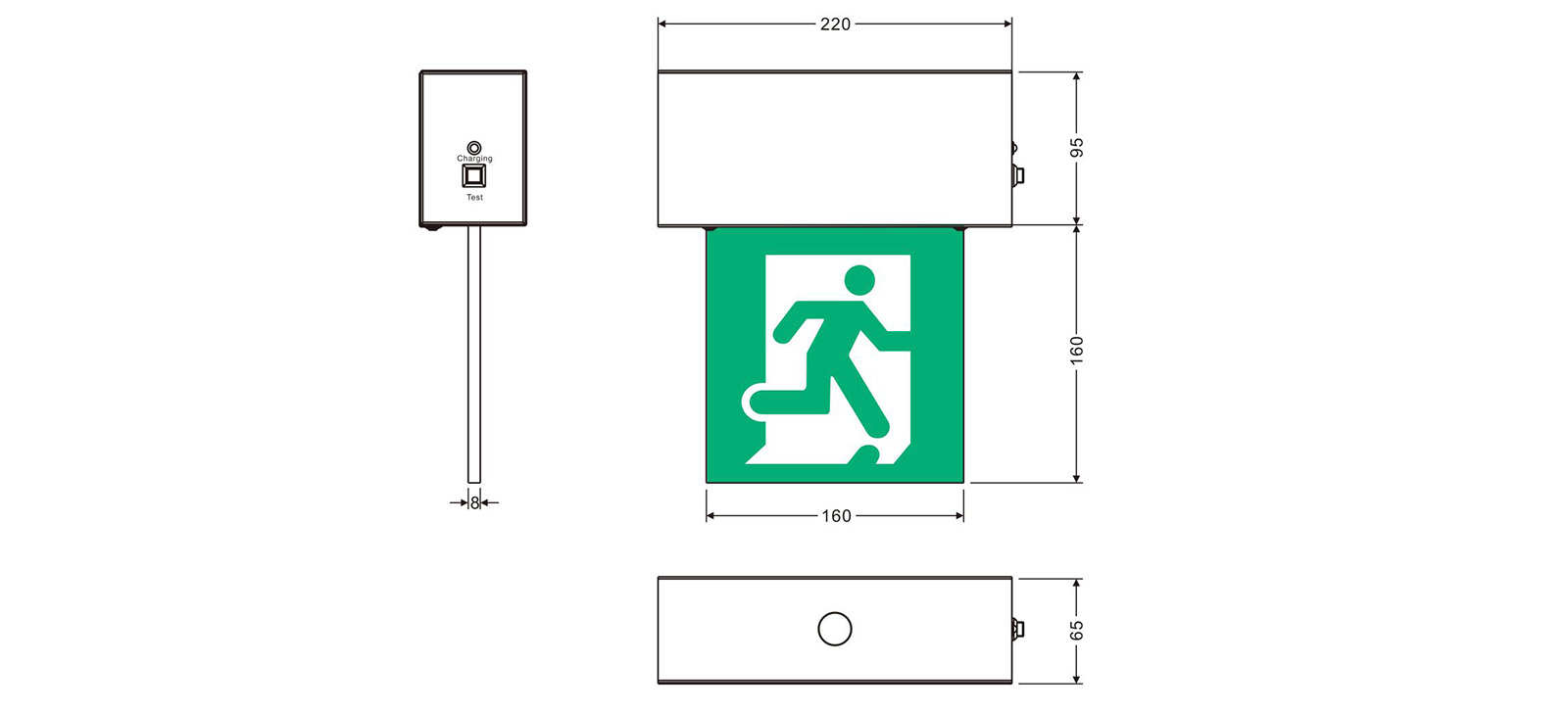

165 Surface Mounted Emergency Exit Sign a

product Description

Sustainability Focus

Energy-efficient LED technology contributes to reduced energy consumption and carbon footprint.
Long-lasting battery and durable materials minimize waste and environmental impact, promoting sustainability.

Customization & OEM/ODM Services

Offer customization options to meet specific needs and branding requirements.
Provide OEM and ODM services to create unique emergency lighting solutions tailored to your specifications.

Certification Flexibility

Available with various certifications to meet international safety standards and regulations.
Capable of obtaining additional certifications based on specific country or region requirements.
Dedicated to ensuring our products meet the highest levels of safety, quality, and performance.

With the P220ZY220L033V6-10C emergency lighting solution, you can trust that your facility will be equipped with the latest in safety technology. Its combination of efficiency, reliability, and customization options make it the perfect choice for any organization committed to the safety and well-being of its occupants.
