KL International Launches 165 Emergency Exit Sign Box with Advanced LED Technology for Enhanced Building Safety
Global Emergency Lighting Market Expands as Safety Regulations Tighten
The global Emergency Lighting market continues its strong growth trajectory, driven by increasingly stringent building safety codes and a heightened focus on public safety across commercial, industrial, and institutional facilities. According to market research, the emergency lighting market reachedUSD 7.31 billion in 2025 and is projected to hit USD 11.93 billion by 2030, reflecting a compound annual growth rate (CAGR) of 10.29%.
Within the emergency exit sign segment specifically, the market was estimated at USD 4.85 billion in 2024 and is expected to reach USD 8.25 billion by 2032, growing at a CAGR of 6.2%. This expansion is fueled by widespread retrofits of outdated signage, the adoption of green-building standards, and the integration of smart-lighting technologies that enable automated testing and remote monitoring.

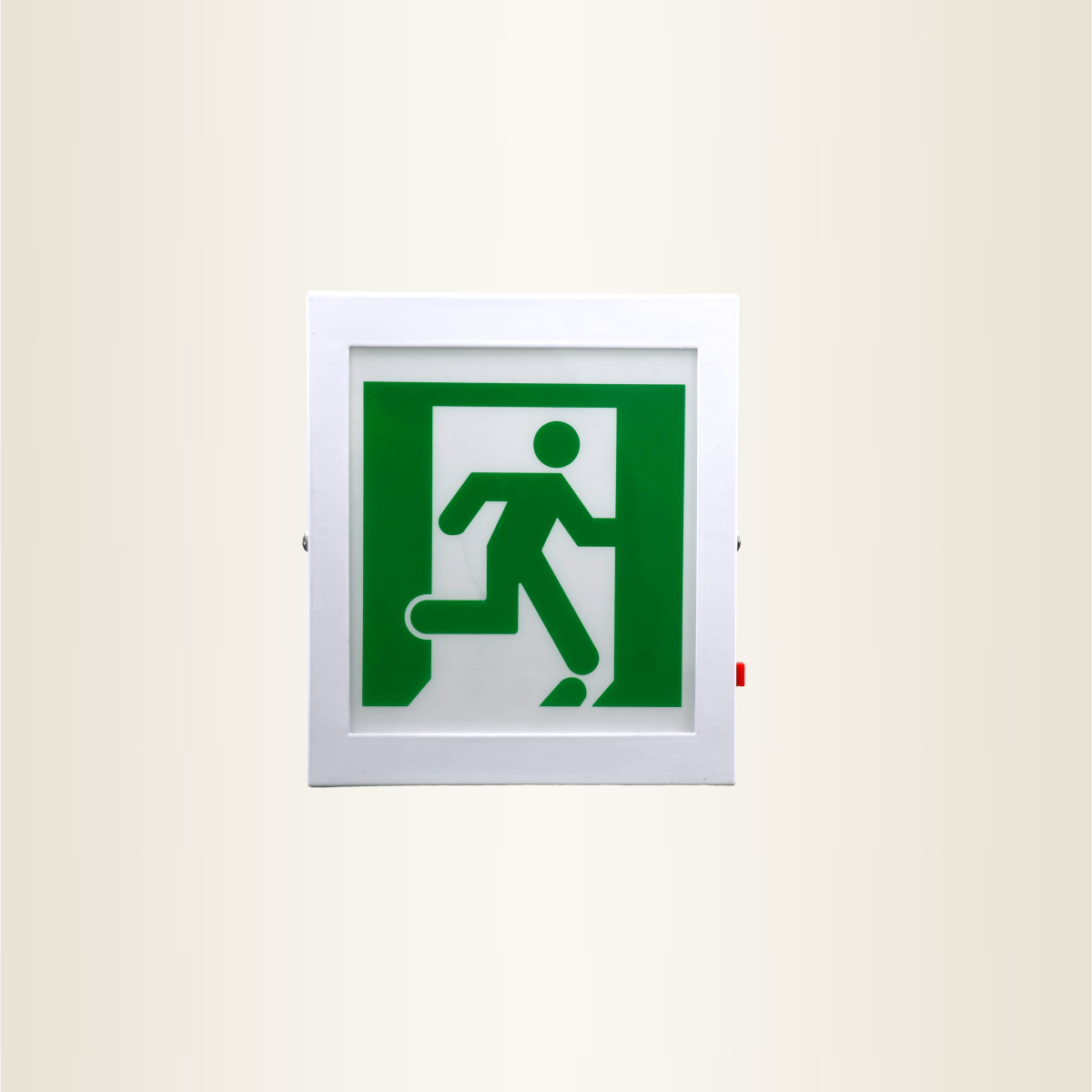

KL International, a recognized provider of industrial safety solutions, has positioned itself at the forefront of this market evolution with the launch of its new 165 Emergency Exit Sign Box—a high-performance unit engineered to deliver reliable, code-compliant emergency illumination for a wide range of facility types.
Technical Specifications: The X165ZY220L033V6-10C Emergency Exit Sign
At the heart of KL International's new offering is the X165ZY220L033V6-10C model—an emergency exit sign that integrates premium components and intelligent design to exceed code requirements across multiple jurisdictions. The unit operates on a 220-240 VAC input, consuming just 4.0W at 220V AC and 5.4W at 240V AC, making it one of the most energy-efficient options in its class.
6000K LED light source, producing crisp, white illumination visible in smoke and low-light conditions.
DC surface brightness exceeding 100 cd/m², surpassing NFPA 101 visibility requirements.
Extended Battery Backup and Rapid Switching
During a power outage, every second counts. The 165 Emergency Exit Sign Box provides up to 2 hours of continuous emergency illumination—surpassing the NFPA 101 requirement of 90 minutes. This extended backup duration offers an additional safety margin for large facilities and high-occupancy buildings.
The unit achieves a switching time of less than 0.1 seconds, ensuring that emergency lighting activates almost instantly when normal power fails. NFPA 101 requires activation within 10 seconds; the X165ZY220L033V6-10C operates an order of magnitude faster.
The integrated Ni-CD 3.6V/600mAh battery provides reliable backup power and is designed for consistent performance over repeated charge-discharge cycles.
Illumination and Visibility Compliance
NFPA 101 requires emergency lighting to provide an initial average of at least 1 foot-candle (approximately 10.8 lux) at floor level along the egress path. The X165ZY220L033V6-10C's high-output LED array ensures these illumination thresholds are consistently met or exceeded.
Additionally, UL 924requires that Exit Signs be illuminated to a minimum of 5 foot-candles in normal lighting conditions and at least 1 foot-candle in emergency situations. The165 Emergency Exit Sign Box meets these dimensional and illumination specifications, ensuring full compliance with applicable codes.
The Future of Emergency Exit Signs: Smart and Connected Systems
The emergency lighting industry is evolving toward smarter, more connected solutions. Emerging technologies integrate IoT-based emergency exit sign systems with smoke and temperature sensors, enabling dynamic evacuation guidance that routes occupants away from active hazards.
Cloud Connectivity: Allows operators to remotely monitor battery health and perform automated monthly self-tests.
NFPA 101 Compliance: Section 7.9.3 requires functional testing at 30-day intervals. Smart systems streamline this documentation.
The X165ZY220L033V6-10C provides a solid foundation for these next-generation capabilities. Its robust power management system and durable construction make it suitable for integration into intelligent building safety networks.
OEM and ODM Capabilities for Global Clients
Beyond standard specifications, KL International offers comprehensive OEM and ODM services for clients seeking to develop proprietary emergency lighting solutions. Customization options include branding modifications, housing color variations, and tailored faceplate designs.
The unit's IP20-rated construction, powder-coated steel housing, and acrylic (PMMA) faceplate provide durability suitable for indoor commercial and industrial environments, while the compact design allows for versatile mounting options.
